Social Network Analysis

Worksheet 4b: Network Concepts and Descriptives II

Author

Termeh Shafie

library(igraph)
library(networkdata)
library(netUtils)
library(netrankr)

Directed networks

Reciprocity

Load the “Hightech manager” dataset

data("ht_advice")
data("ht_friends")
data("ht_reports")

These data were collected from the managers of a high-tech company. Each manager was asked “To whom do you go to for advice?” and “Who is your friend?”. Data for the item “To whom do you report?” was taken from company documents.

Exercise 1:

  • Before computing the reciprocity, think about where you expect high and where low reciprocity
  • Compute the reciprocity of each network. Does it fit you intuition?
Show solution
reciprocity(ht_advice)
reciprocity(ht_friends)
reciprocity(ht_reports)

Triad census

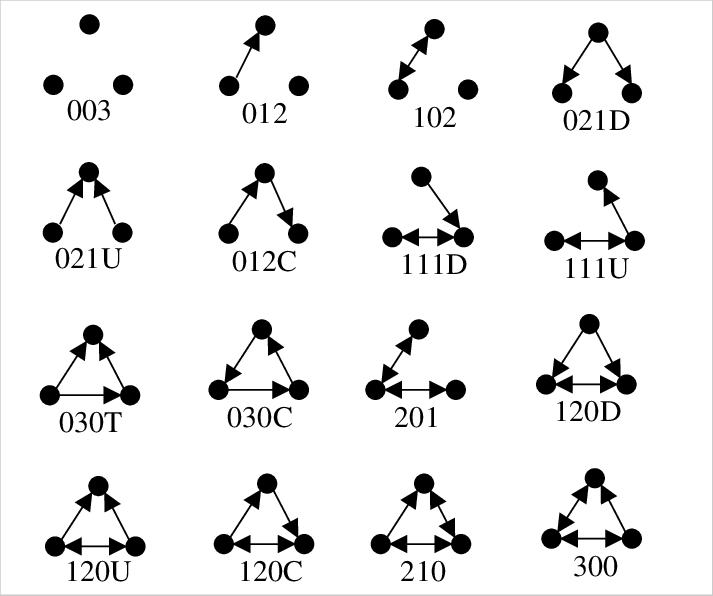

One of the many applications of the triad census is to compare a set of networks. Networks with a similar triad census profile are said to be structurally similar.

Exercise 2:

Compute the triad census for each of the three “Hightech manager” dataset and interpret the results.

Show solution
triad_census(ht_advice)
triad_census(ht_friends)
triad_census(ht_reports)

Centrality

Exploring implemented indices

(interactive session)

igraph contains the following 10 indices:

  • degree (degree())
  • weighted degree (strength())
  • betweenness (betweenness())
  • closeness (closeness())
  • eigenvector (eigen_centrality())
  • alpha centrality (alpha_centrality())
  • power centrality (power_centrality())
  • PageRank (page_rank())
  • eccentricity (eccentricity())
  • hubs and authorities (authority_score() and hub_score())
  • subgraph centrality (subgraph_centrality())

To illustrate some of the indices, we use the “dbces11” graph which is part of the netrankr package.

data("dbces11")

Rise of the Medici

data("flo_marriage")

The figure below shows part of the marriage network of Florentine families around 1430. The node size corresponds to the number of prior seats and the size of the label to their wealth.

The network includes families who were locked in a struggle for political control of the city of Florence. Two factions were dominant in this struggle: one revolved around the infamous Medicis, the other around the powerful Strozzis.

The network is frequently used to illustrate how a central position in a network can have beneficial outcomes for actors.

Exercise 3

  • Calculate degree, betweenness, closeness, and eigenvector centrality
  • Argue for each index, why it might be beneficial to have a high rank in this particular network and setting
Show solution
sort(degree(flo_marriage), decreasing = TRUE)
sort(betweenness(flo_marriage), decreasing = TRUE)
sort(closeness(flo_marriage), decreasing = TRUE)
sort(eigen_centrality(flo_marriage)$vector, decreasing = TRUE)

Extra: Choose one index and with the help of SNAhelper visualize the network such that the node sizes are proportional to centrality values.

PageRank

load the ATP or WTA dataset from the networkdata package. Both contain a list of igraph objects of tennis results from 1968 to 2021. The last season (2021) can be accessed via atp[[54]] or wta[[54]].

data(atp)
str(atp[[54]])
-------------------------------------------------------
ATP SEASON 2021 (directed, weighted, one-mode network)
-------------------------------------------------------
Nodes: 393, Edges: 2609, Density: 0.0169, Components: 14, Isolates: 0
-Graph Attributes:
  name(c)
---
-Vertex Attributes:
 name(c): Frances Tiafoe, Jan Lennard Struff, Sumit Nagal, John Millman, ...
 hand(c): R, R, R, R, R, R, L, R, R, R, R, R, R, R, L, R, R, R, L, R, R, ...
 age(n): 23, 31, 24, 32, 21, 34, 27, 22, 28, 29, 25, 29, 33, 34, 28, 29, ...
 country(c): USA, GER, IND, AUS, CZE, KAZ, GER, SRB, USA, BLR, COL, AUS, ...
---
-Edge Attributes:
 surface(c): Clay, Hard, Hard, Hard, Hard, Clay, Hard, Clay, Hard, Clay, ...
 weight(n): 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, ...
---
-Edges (first 10):
 Adolfo Daniel Vallejo->Tom Kocevar Desman Adrian Andreev->Alex De
Minaur Adrian Andreev->Alexei Popyrin Adrian Andreev->Gerardo Lopez
Villasenor Adrian Andreev->Miomir Kecmanovic Adrian Mannarino->Albert
Ramos Adrian Mannarino->Alexander Zverev Adrian Mannarino->Aljaz Bedene
Adrian Mannarino->Andy Murray Adrian Mannarino->Arthur Cazaux

A directed edge points from the loser to the winner of a match. The network is weighted and a weight corresponds to the number of times a player lost to another on a specific surface.

Exercise 4

  • What do weighted in- and out-degree, and degree measure mean in the network?
  • Why could Page Rank be a good index to measure player strength?
  • Who was the best player in 2021 according to Page Rank?
  • Plot the relation between matches won and Page rank. What can you observe?
  • Try to redo the analysis for a specific surface (Clay, Hard, Grass)
Tip

the igraph functions you need are page_rank() and strength(). Check the help for how they handle weights and direction.

To extract the network for a specific surface, check out subgraph_from_edges()

Show solution
g <- atp[[54]]
#top ten in 2021
sort(page_rank(g)$vector,decreasing = TRUE)[1:10]
plot(degree(g, mode = "in"),page_rank(g)$vector)
# example: extract clay networks
g1 <- subgraph_from_edges(g,which(E(g)$surface=="Clay"))
#top ten in 2021
sort(page_rank(g1)$vector,decreasing = TRUE)[1:10]

Exercise: Clustering

Practice the clustering workflow with (a) network(s) from the networkdata package. When choosing a directed and/or weighted network, make sure to set parameters appropriately.
